Standard push stick for table saw

RTC Standard push stick video



Tea Box Dividers

Dividers are ripped to 60mm and then planned down to fit in dados done on the pin router.

After crosscutting the right length, Shu Feng marks where the joinery will be cut by placing the dividers in the box.

A sled was modified to cut the half lap dado joint with a dado set on the table saw.

Layout lines were transferred up the newly cut kerf of the dadoblades on the sled.

Then layout lines on the dividers are transferred to the edge and lined up on the fence.

A stop block is now set in place.

The divider is flipped onto the stop block for the second cut.

This ensures the dados are symetrical

Be sure to do a test fit first. It may take a few tries to accurately shim the Dado Set to the perfect width.


Great job Shu!

The Tea Box Complete

Resaw Jig

Phil re-saws  his Maple Dividers to save material

He uses this fancy re-saw jig to track Drift on the band saw.

This jig slips over the rip fence on the band saw

After Phil found the drift, he paralleled it with the jig and then moved the rip fence to resaw down the middle of his board

Watch Phil re-saw his board perfectly

View Video Here

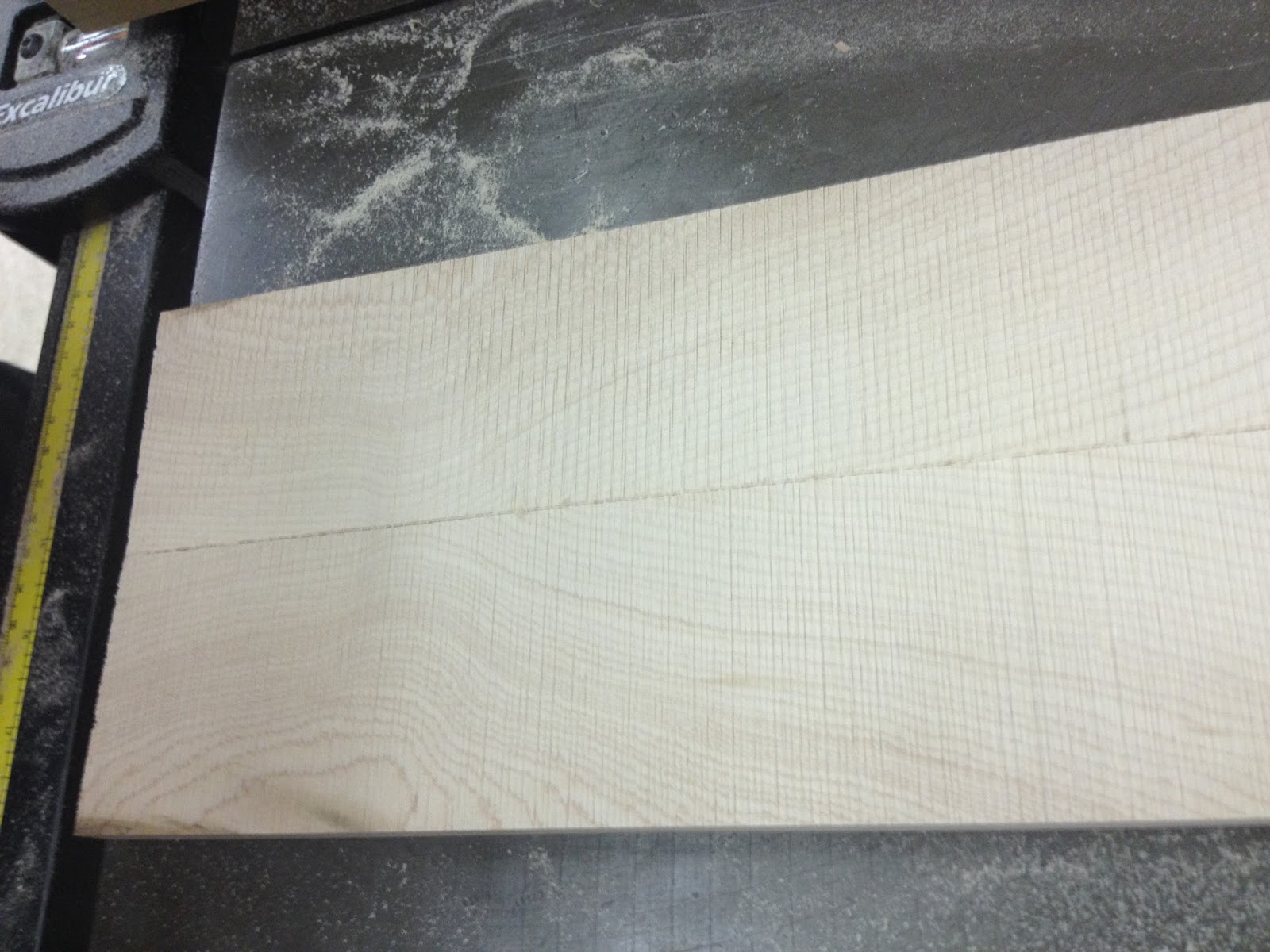

The perfect Book-match

Mallet Detail on the Lathe

 Sonya's Maple Mallet

Watch Sonya Put the finishing touches on her Maple Mallet



After sanding her mallet up to 220 grit,

Sonya uses coat hanger wire to burn dark lines in grooves she made with skew

Sonya then applies wax to the mallet while it is on the lathe and finally burnishes it with its own maple shavings

What a handsome Mallet!

Sonya's mallet is made from laminated maple with pieces of contrasting veneer in between.

Tea Box Spline Jig / Video



Watch Ibrahim cut his spline slots with a rip blade and Table Saw jig.

How simple it looks after proper set up

 A stop block (not visible from the camera angle) is used to ensure cuts are parallel on all corners

Pin Router Operator / Video

Watch Joe safely perform a pin router operation using stop blocks and a sled.

Click Here to see Joe

Tea Box Stop Dados on the Pin Router / video
